Pipe Corrosion Monitoring System
Key Features
Monitors thickness changes and detects defects at specific pipeline points.
Requires no equipment shutdown and has zero impact on production.
Automatically performs monitoring, analysis, reporting, and statistical tasks without human intervention.
Client Benefits

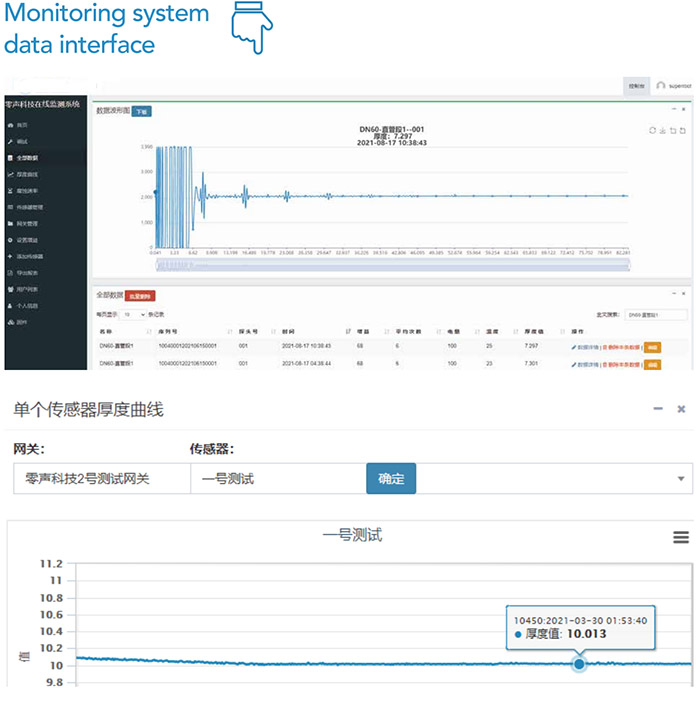

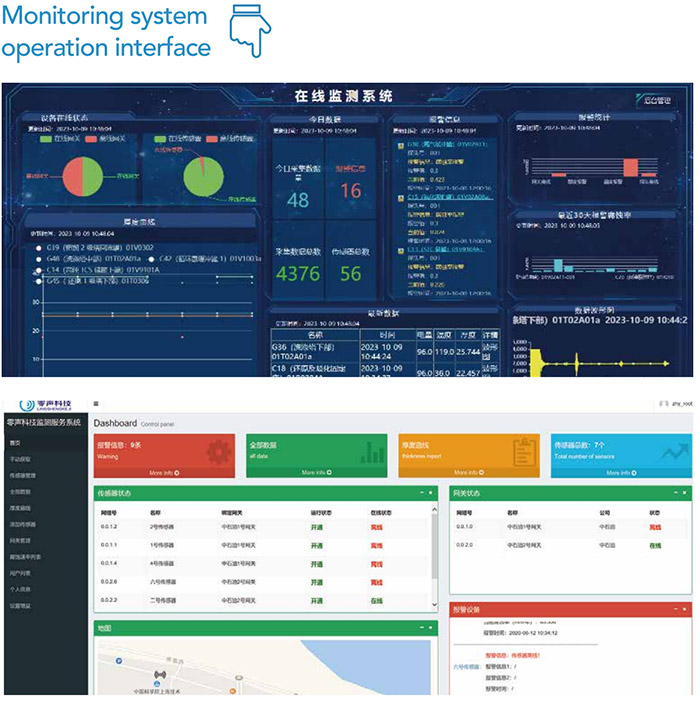

Display real-time graphs (overview, trend, waveform)
Calculate corrosion rates in real-time
Warn early of high corrosion states
Predict remaining asset life
Analyze historical trends
Generate reports automatically
Self-diagnose system faults

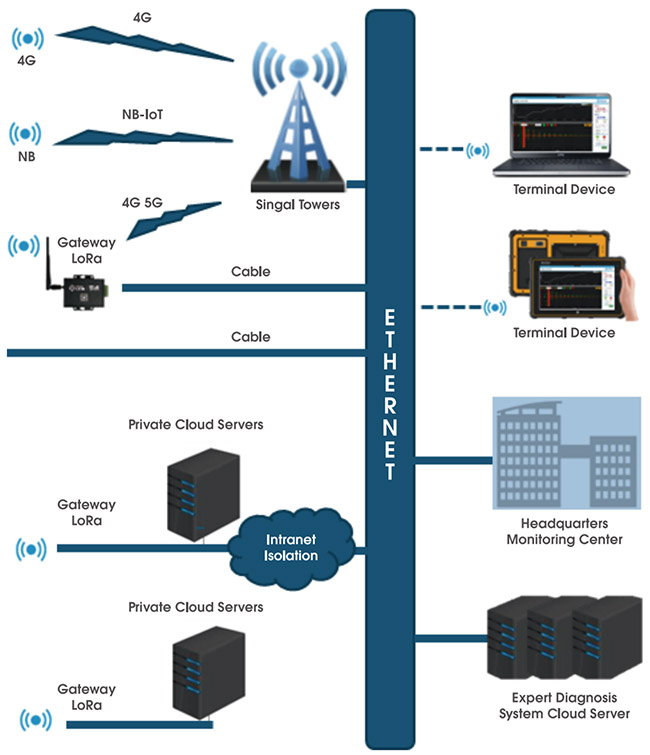

Working Mechanism

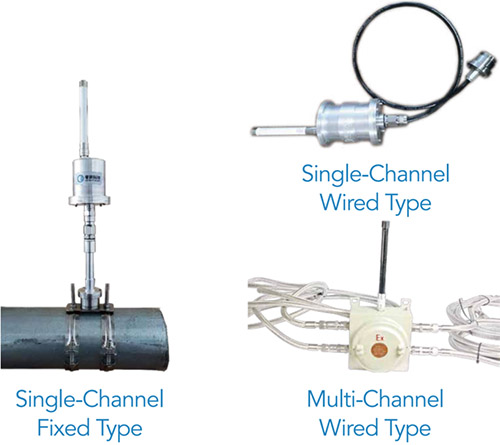

Electromagnetic Acoustic Transducers (EMATs) are installed on pipelines to collect data.
The collected data is transferred via a wired or wireless connection to a data processing server for analysis.
Alarms for potential problems are displayed on computers or mobile devices.

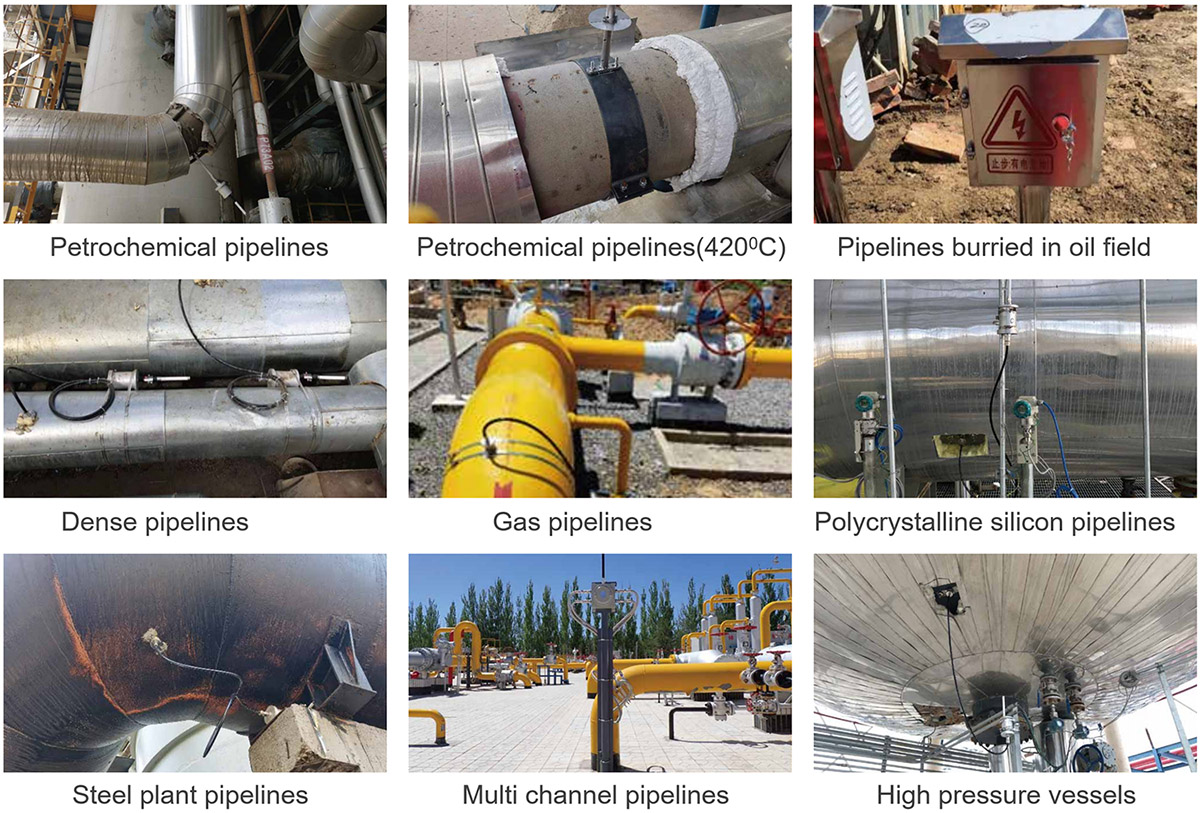

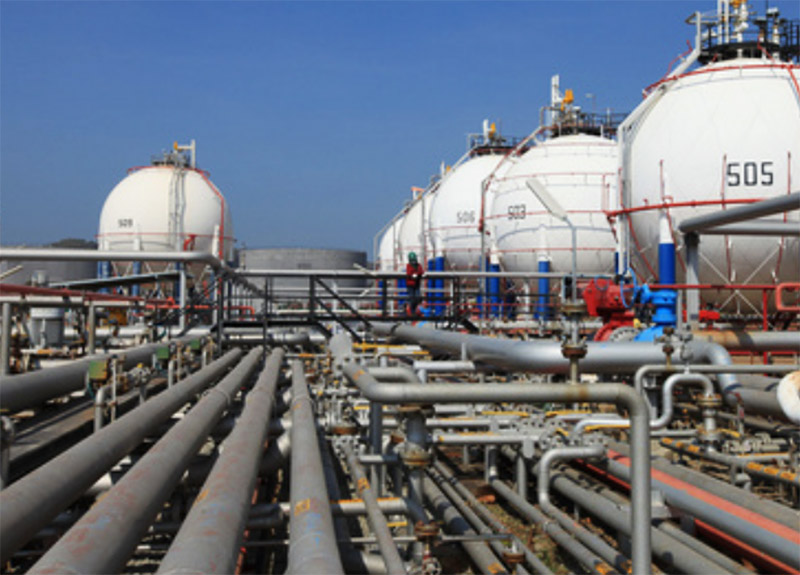

Application Scenarios of Pipe Corrosion Monitoring System

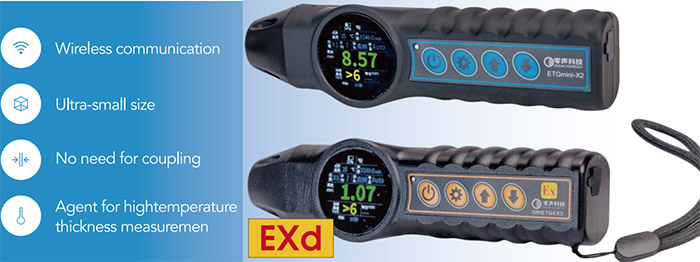

Portable Metal Thickness Gauge
Product Features
Ultra-small, non-contact design for thickness measurement.
Measures the thickness of metals and magnetically conductive materials.
Also suitable for coating thickness measurement.
Client Benefits
Compact and portable design for use in the field.
Dual Technology: Combines electromagnetic ultrasonic (EMAT) for base metal thickness and eddy current for coating thickness.
Couplant-Free Operation: The EMAT technology requires no couplant (ultrasonic gel).
Coating-Insensitive: Measures base metal thickness through coatings without the need to remove them.
Surface-Tolerant: No grinding or surface preparation is needed, even on rough surfaces.
Wireless Connectivity: Connects via Bluetooth to tablets or smartphones for data transfer and control.

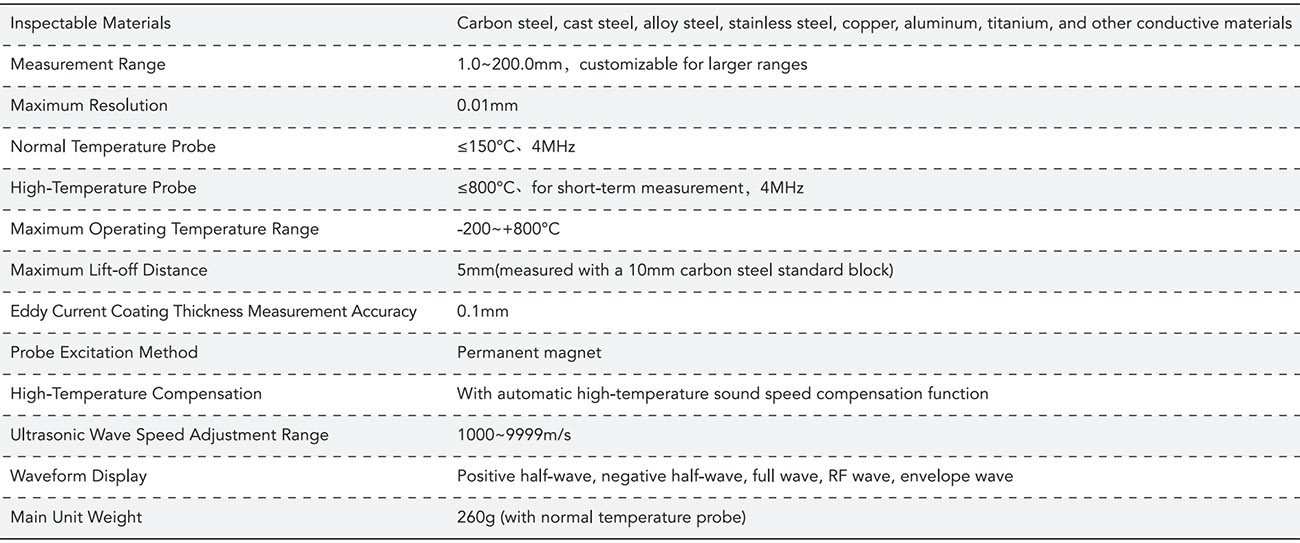

Parameters

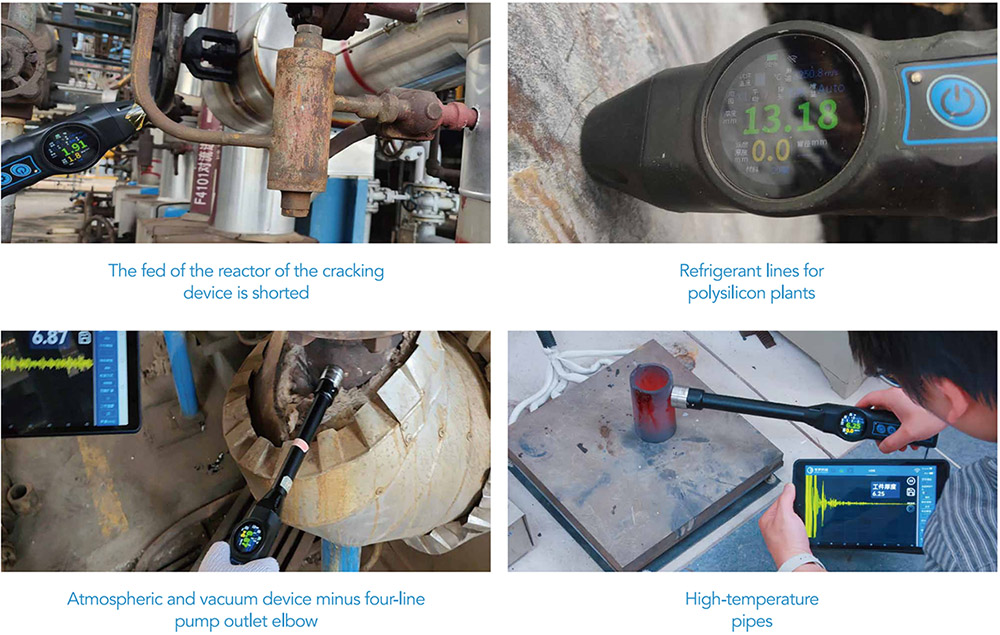

Application Scenarions of the Portable Metal Thickness Gauge
